STRUGGLE PLANIA
Tipo:
PRACTICABLE

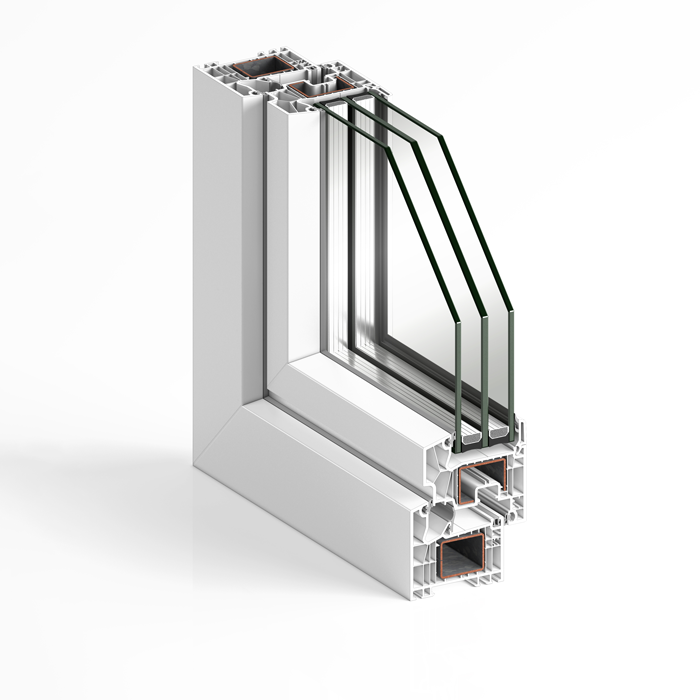

System for hinged windows and doors with a 76 mm frame depth.
System for hinged windows and doors with a 76 mm frame depth.
Maximum glazing capacity of 49 mm.
✓ Available in a straight sash with 6 chambers or a semi-flush sash with 7 chambers, featuring clean, minimalist lines.
✓ High energy efficiency with U-values (U_w) as low as 0.82 W/m²K.
✓ Suitable for extreme climates.
✓ The profiles incorporate high-inertia galvanized steel reinforcements that provide exceptional rigidity and stability, and allow for large opening dimensions.
- Performance characteristics
Air permeability💡
Watertightness💡
Wind resistance💡
Sound insulation💡
Thermal transmittance💡
- Dimensions
Glazing
Maximum thickness: 49 mm
Maximum weight per sheet
Balcony: 130 kg
Door: 200 kg
- Features
Sections
Frame: 76 mm / Leaf: 76 mm / Leaf: 84 mm
Maximum dimensions per sheet:
WINDOW Width (L): 1400 mm Height (H): 2450 mm
*Designed with a sash divider profile or adhesive strip between the glass and the sash.
BALCONY DOOR Width (L): 1400 mm Height (H): 2450 mm
DOOR Width (L): 1300 mm Height (H): 2500 mm
*Designed with a sash divider profile or adhesive strip between the glass and the sash.
BALCONY DOOR Width (L): 1400 mm Height (H): 2450 mm
DOOR Width (L): 1300 mm Height (H): 2500 mm
LUZ
SEGURIDAD
DESCANSO
CONFORT
AHORRO
- Apertura interior
Tilt and turn operable
Folding
Parallel oscillator
- Exterior opening
Practicable
