STRUGAL PLANIA RUSTIC

System

PVC windows

Tipo:
PRACTICABLE

Start. Finishes. Discharges. Accessories

These windows combine the elegance of wooden windows with the versatility and functionality of PVC.

This hinged window and door system maintains the same technical characteristics as the PLANIA and PLANIA TRIPLE JOINT models. PLANIA RUSTIC windows feature an innovative way of joining the frames and sashes.

The corners on the exterior of PLANIA RUSTIC windows are joined straight (vertically on the sash and horizontally on the frame) and not mitered as in traditional PVC systems.

Air permeability💡

CLASS 4

Watertightness💡

E1650

Wind resistance💡

Sound insulation💡

Rw ≤ 44 dB

Thermal transmittance💡

Double Junta: Uw ≥ 0.82 W/m2K Triple Junta: Uw ≥ 0.74 W/m2K

Glazing

Maximum: 49 mm

Maximum weight per sheet

Balcony: 130 kg Door: 200 kg

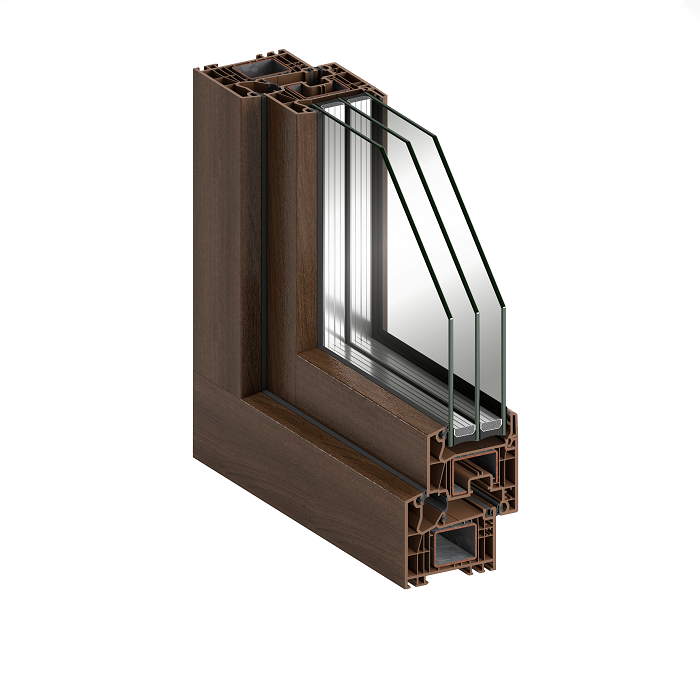

Sections

Frame: 76 mm Leaf: 76 mm

Maximum dimensions per sheet:

WINDOW Width (L): 1400 mm Height (H): 2450 mm
*Designed with a sash divider profile or adhesive strip between the glass and the sash.
BALCONY DOOR Width (L): 1400 mm Height (H): 2450 mm
DOOR Width (L): 1300 mm Height (H): 2500 mm
